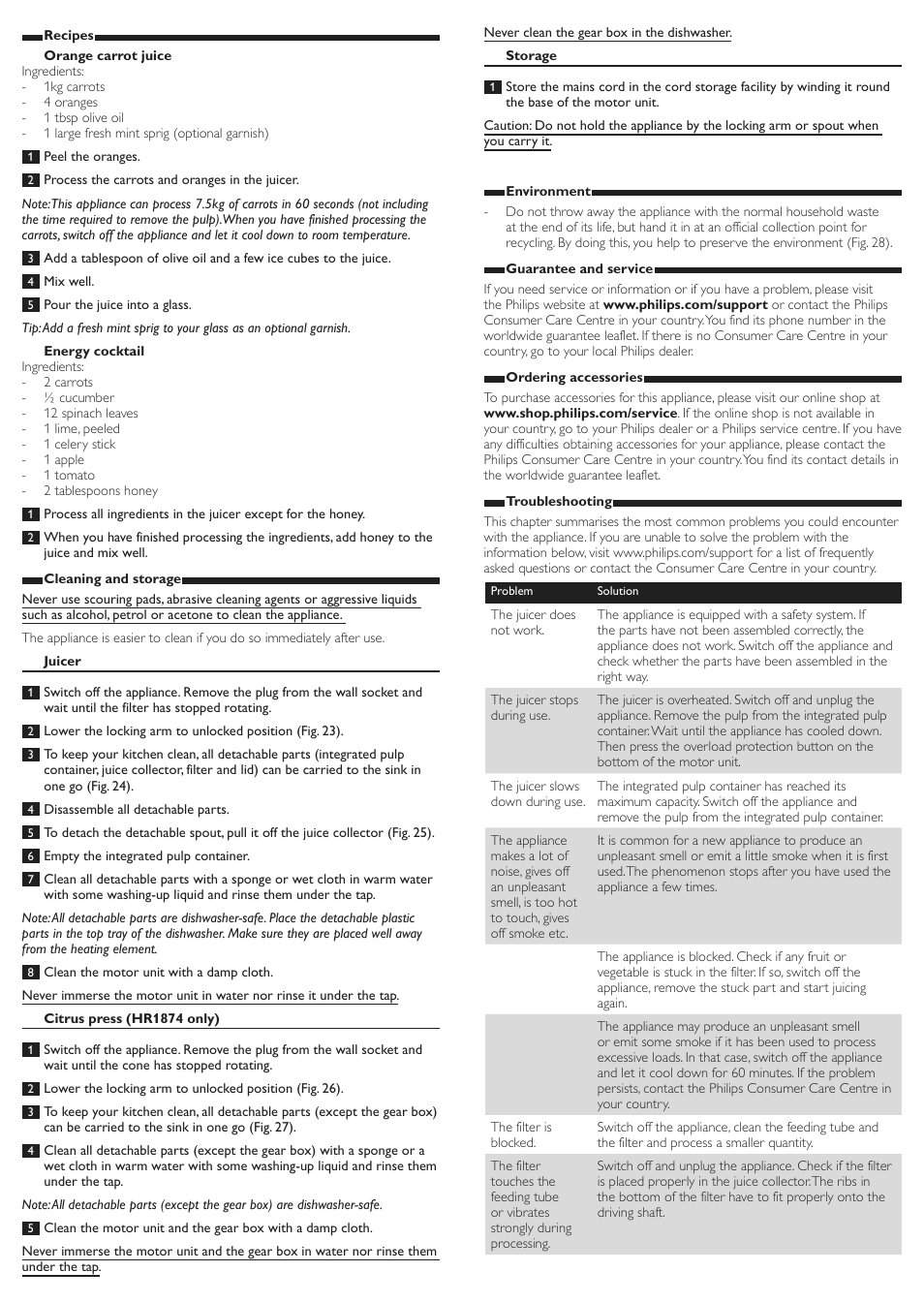

Инструкция по эксплуатации Philips HR1874 — страница 4

Never clean the gear box in the dishwasher.

storage

Store the mains cord in the cord storage facility by winding it round the base of the motor unit.

Caution: Do not hold the appliance by the locking arm or spout when you carry it.

Environment

Do not throw away the appliance with the normal household waste at the end of its life but hand it in at an official collection point for recycling By doing this you help to preserve the environment (Fig 28). guarantee and service

If you need service or information or if you have a problem please visit the Philips website at or contact the Philips

Consumer Care Centre in your country You find its phone number in the worldwide guarantee leaflet If there is no Consumer Care Centre in your country go to your local Philips dealer

Ordering accessories

To purchase accessories for this appliance please visit our online shop at If the online shop is not available in your country go to your Philips dealer or a Philips service centre If you have any difficulties obtaining accessories for your appliance please contact the

Philips Consumer Care Centre in your country You find its contact details in the worldwide guarantee leaflet

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance If you are unable to solve the problem with the information below visit for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem

Solution

The juicer does not work.

The appliance is equipped with a safety system If the parts have not been assembled correctly the appliance does not work Switch off the appliance and check whether the parts have been assembled in the right way.

The juicer stops during use.

The juicer is overheated Switch off and unplug the appliance Remove the pulp from the integrated pulp container Wait until the appliance has cooled down

Then press the overload protection button on the bottom of the motor unit.

The juicer slows down during use.

The integrated pulp container has reached its maximum capacity Switch off the appliance and remove the pulp from the integrated pulp container.

The appliance makes a lot of noise gives off an unpleasant smell is too hot to touch gives off smoke etc.

It is common for a new appliance to produce an unpleasant smell or emit a little smoke when it is first used The phenomenon stops after you have used the appliance a few times.

The appliance is blocked Check if any fruit or vegetable is stuck in the filter If so switch off the appliance remove the stuck part and start juicing again The appliance may produce an unpleasant smell or emit some smoke if it has been used to process excessive loads In that case switch off the appliance and let it cool down for 60 minutes If the problem persists contact the Philips Consumer Care Centre in your country.

The filter is blocked.

Switch off the appliance clean the feeding tube and the filter and process a smaller quantity.

The filter touches the feeding tube or vibrates strongly during processing.

Switch off and unplug the appliance Check if the filter is placed properly in the juice collector The ribs in the bottom of the filter have to fit properly onto the driving shaft.

Recipes Orange carrot juice

Ingredients:

1kg carrots

4 oranges

1 tbsp olive oil

1 large fresh mint sprig (optional garnish)

Peel the oranges.

Process the carrots and oranges in the juicer.

Note: This appliance can process 7.5kg of carrots in 60 seconds (not including the time required to remove the pulp).When you have finished processing the carrots switch off the appliance and let it cool down to room temperature.

Add a tablespoon of olive oil and a few ice cubes to the juice.

Mix well.

Pour the juice into a glass.

Tip: Add a fresh mint sprig to your glass as an optional garnish.

Energy cocktail

Ingredients:

2 carrots

½ cucumber

12 spinach leaves

1 lime peeled

1 celery stick

1 apple

1 tomato

2 tablespoons honey

Process all ingredients in the juicer except for the honey.

When you have finished processing the ingredients add honey to the juice and mix well Cleaning and storage

Never use scouring pads abrasive cleaning agents or aggressive liquids such as alcohol petrol or acetone to clean the appliance The appliance is easier to clean if you do so immediately after use.

Juicer

Switch off the appliance Remove the plug from the wall socket and wait until the filter has stopped rotating.

Lower the locking arm to unlocked position (Fig 23).

To keep your kitchen clean all detachable parts (integrated pulp container juice collector filter and lid) can be carried to the sink in one go (Fig 24).

Disassemble all detachable parts.

To detach the detachable spout pull it off the juice collector (Fig 25).

Empty the integrated pulp container.

Clean all detachable parts with a sponge or wet cloth in warm water with some washing-up liquid and rinse them under the tap.

Note: All detachable parts are dishwasher-safe Place the detachable plastic parts in the top tray of the dishwasher Make sure they are placed well away from the heating element.

Clean the motor unit with a damp cloth.

Never immerse the motor unit in water nor rinse it under the tap.

Citrus press (hR1874 only)

Switch off the appliance Remove the plug from the wall socket and wait until the cone has stopped rotating.

Lower the locking arm to unlocked position (Fig 26).

To keep your kitchen clean all detachable parts (except the gear box) can be carried to the sink in one go (Fig 27).

Clean all detachable parts (except the gear box) with a sponge or a wet cloth in warm water with some washing-up liquid and rinse them under the tap

Note: All detachable parts (except the gear box) are dishwasher-safe.

Clean the motor unit and the gear box with a damp cloth.

Never immerse the motor unit and the gear box in water nor rinse them under the tap.
