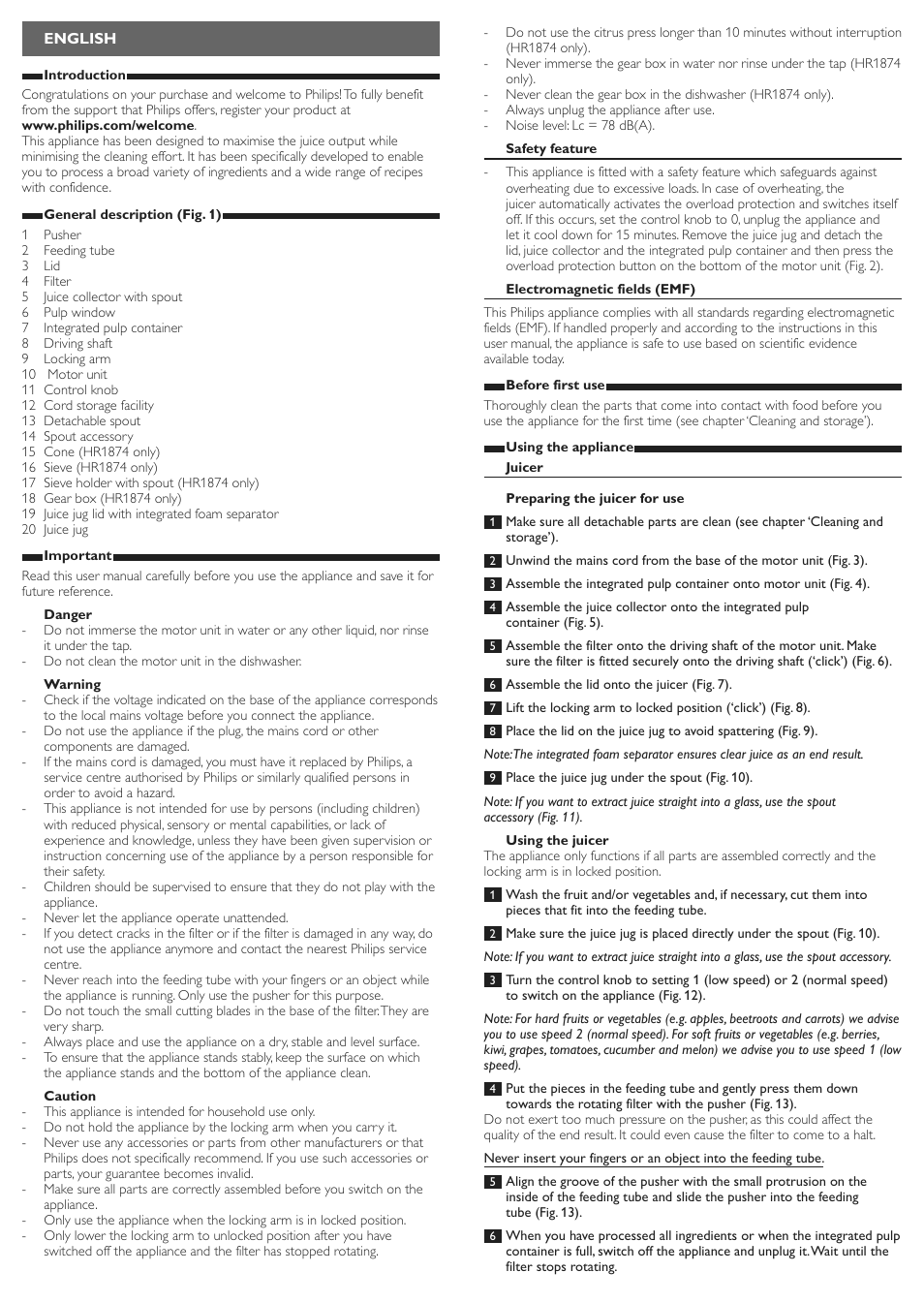

English introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers register your product at

This appliance has been designed to maximise the juice output while minimising the cleaning effort It has been specifically developed to enable you to process a broad variety of ingredients and a wide range of recipes with confidence general description (Fig 1)

1 Pusher

2 Feeding tube

3 Lid

4 Filter

5 Juice collector with spout

6 Pulp window

7 Integrated pulp container

8 Driving shaft

9 Locking arm

10 Motor unit

11 Control knob

12 Cord storage facility

13 Detachable spout

14 Spout accessory

15 Cone (HR1874 only)

16 Sieve (HR1874 only)

17 Sieve holder with spout (HR1874 only)

18 Gear box (HR1874 only)

19 Juice jug lid with integrated foam separator

20 Juice jug important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

Do not immerse the motor unit in water or any other liquid nor rinse it under the tap.

Do not clean the motor unit in the dishwasher.

Warning

Check if the voltage indicated on the base of the appliance corresponds to the local mains voltage before you connect the appliance.

Do not use the appliance if the plug the mains cord or other components are damaged.

If the mains cord is damaged you must have it replaced by Philips a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Never let the appliance operate unattended.

If you detect cracks in the filter or if the filter is damaged in any way do not use the appliance anymore and contact the nearest Philips service centre.

Never reach into the feeding tube with your fingers or an object while the appliance is running Only use the pusher for this purpose.

Do not touch the small cutting blades in the base of the filter They are very sharp.

Always place and use the appliance on a dry stable and level surface

To ensure that the appliance stands stably keep the surface on which the appliance stands and the bottom of the appliance clean Caution

This appliance is intended for household use only.

Do not hold the appliance by the locking arm when you carry it.

Never use any accessories or parts from other manufacturers or that

Philips does not specifically recommend If you use such accessories or parts your guarantee becomes invalid.

Make sure all parts are correctly assembled before you switch on the appliance.

Only use the appliance when the locking arm is in locked position.

Only lower the locking arm to unlocked position after you have switched off the appliance and the filter has stopped rotating.

Do not use the citrus press longer than 10 minutes without interruption (HR1874 only).

Never immerse the gear box in water nor rinse under the tap (HR1874 only).

Never clean the gear box in the dishwasher (HR1874 only).

Always unplug the appliance after use.

Noise level: Lc = 78 dB(A).

safety feature

This appliance is fitted with a safety feature which safeguards against overheating due to excessive loads In case of overheating the juicer automatically activates the overload protection and switches itself off If this occurs set the control knob to 0 unplug the appliance and let it cool down for 15 minutes Remove the juice jug and detach the lid juice collector and the integrated pulp container and then press the overload protection button on the bottom of the motor unit (Fig 2). Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF) If handled properly and according to the instructions in this user manual the appliance is safe to use based on scientific evidence available today.

Before first use

Thoroughly clean the parts that come into contact with food before you use the appliance for the first time (see chapter ‘Cleaning and storage’)

Using the appliance Juicer

Preparing the juicer for use

Make sure all detachable parts are clean (see chapter ‘Cleaning and storage’).

Unwind the mains cord from the base of the motor unit (Fig 3).

Assemble the integrated pulp container onto motor unit (Fig 4).

Assemble the juice collector onto the integrated pulp container (Fig 5).

Assemble the filter onto the driving shaft of the motor unit Make sure the filter is fitted securely onto the driving shaft (‘click’) (Fig 6).

Assemble the lid onto the juicer (Fig 7).

Lift the locking arm to locked position (‘click’) (Fig 8).

Place the lid on the juice jug to avoid spattering (Fig 9).

Note: The integrated foam separator ensures clear juice as an end result.

Place the juice jug under the spout (Fig 10).

Note: If you want to extract juice straight into a glass use the spout accessory (Fig 11).

Using the juicer

The appliance only functions if all parts are assembled correctly and the locking arm is in locked position

Wash the fruit and/or vegetables and if necessary cut them into pieces that fit into the feeding tube

Make sure the juice jug is placed directly under the spout (Fig 10).

Note: If you want to extract juice straight into a glass use the spout accessory.

Turn the control knob to setting 1 (low speed) or 2 (normal speed) to switch on the appliance (Fig 12).

Note: For hard fruits or vegetables (e.g apples beetroots and carrots) we advise you to use speed 2 (normal speed) For soft fruits or vegetables (e.g berries kiwi grapes tomatoes cucumber and melon) we advise you to use speed 1 (low speed).

Put the pieces in the feeding tube and gently press them down towards the rotating filter with the pusher (Fig 13).

Do not exert too much pressure on the pusher as this could affect the quality of the end result It could even cause the filter to come to a halt Never insert your fingers or an object into the feeding tube.

Align the groove of the pusher with the small protrusion on the inside of the feeding tube and slide the pusher into the feeding tube (Fig 13).

When you have processed all ingredients or when the integrated pulp container is full switch off the appliance and unplug it Wait until the filter stops rotating.
