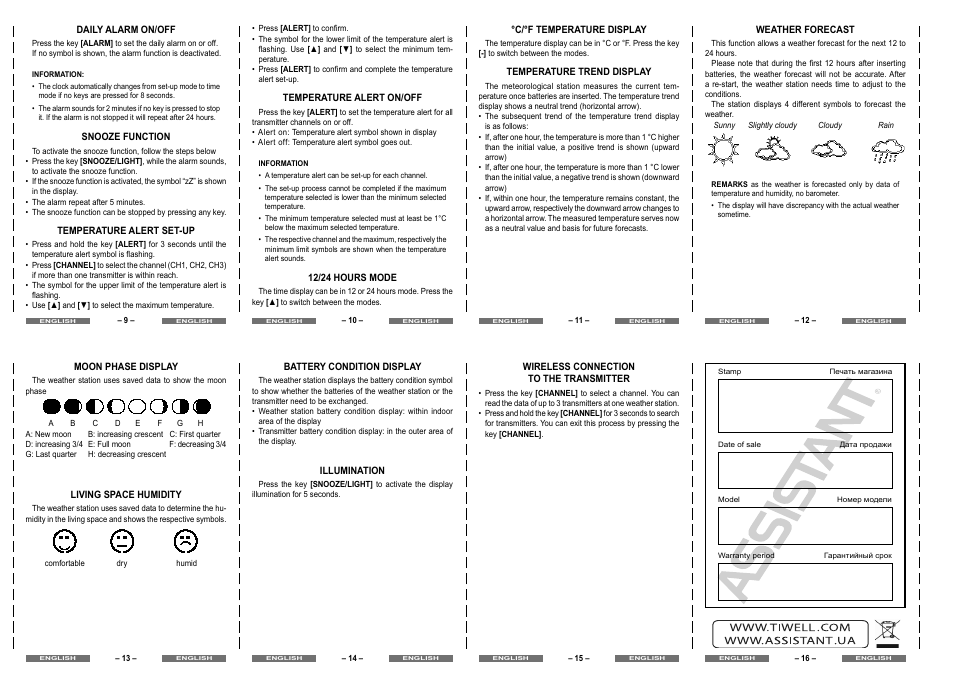

Инструкция по эксплуатации ASSISTANT AH-1992 — страница 2

– 9 –

– 10 –

– 11 –

– 12 –

– 13 –

– 15 –

ENGLISH

ENGLISH

ENGLISH

ENGLISH

ENGLISH

ENGLISH

ENGLISH

ENGLISH

ENGLISH

ENGLISH

ENGLISH

ENGLISH

– 14 –

ENGLISH

ENGLISH

– 16 –

ENGLISH

ENGLISH

DAILY ALARM ON/OFF

Press the key [ALARM] to set the daily alarm on or off If no symbol is shown the alarm function is deactivated.

INFORMATION:

- The clock automatically changes from set-up mode to time mode if no keys are pressed for 8 seconds.

• The alarm sounds for 2 minutes if no key is pressed to stop it If the alarm is not stopped it will repeat after 24 hours.

SNOOZE FUNCTION

To activate the snooze function follow the steps below

• Press the key [SNOOZE/LIGHT] while the alarm sounds to activate the snooze function.

• If the snooze function is activated the symbol “zZ” is shown in the display.

• The alarm repeat after 5 minutes.

- The snooze function can be stopped by pressing any key.

TEMPERATURE ALERT SET-UP

• Press and hold the key [ALERT] for 3 seconds until the temperature alert symbol is flashing.

• Press [CHANNEL] to select the channel (CH1 CH2 CH3) if more than one transmitter is within reach.

• The symbol for the upper limit of the temperature alert is flashing.

• Use [▲] and [▼] to select the maximum temperature.

• Press [ALERT] to confirm.

- The symbol for the lower limit of the temperature alert is flashing Use [▲] and [▼] to select the minimum temperature.

• Press [ALERT] to confirm and complete the temperature alert set-up.

TEMPERATURE ALERT ON/OFF

Press the key [ALERT] to set the temperature alert for all transmitter channels on or off.

- Alert on: Temperature alert symbol shown in display • Alert off: Temperature alert symbol goes out.

INFORMATION

- A temperature alert can be set-up for each channel.

- The set-up process cannot be completed if the maximum temperature selected is lower than the minimum selected temperature.

• The minimum temperature selected must at least be 1°C below the maximum selected temperature.

• The respective channel and the maximum respectively the minimum limit symbols are shown when the temperature alert sounds.

12/24 HOURS MODE

The time display can be in 12 or 24 hours mode Press the key [▲] to switch between the modes.

°C/°F TEMPERATURE DISPLAY

The temperature display can be in °C or °F Press the key

[-] to switch between the modes.

TEMPERATURE TREND DISPLAY

The meteorological station measures the current temperature once batteries are inserted The temperature trend display shows a neutral trend (horizontal arrow).

- The subsequent trend of the temperature trend display is as follows:

• If after one hour the temperature is more than 1 °C higher than the initial value a positive trend is shown (upward arrow)

• If after one hour the temperature is more than 1 °C lower than the initial value a negative trend is shown (downward arrow)

• If within one hour the temperature remains constant the upward arrow respectively the downward arrow changes to a horizontal arrow The measured temperature serves now as a neutral value and basis for future forecasts.

WEATHER FORECAST

This function allows a weather forecast for the next 12 to 24 hours.

Please note that during the first 12 hours after inserting batteries the weather forecast will not be accurate After a re-start the weather station needs time to adjust to the conditions.

The station displays 4 different symbols to forecast the weather.

Sunny Slightly cloudy Cloudy Rain

REMARKS as the weather is forecasted only by data of temperature and humidity no barometer.

- The display will have discrepancy with the actual weather sometime.

MOON PHASE DISPLAY

The weather station uses saved data to show the moon phase

A B C D E F G H

A: New moon

B: increasing crescent C: First quarter

D: increasing 3/4 E: Full moon F: decreasing 3/4

G: Last quarter H: decreasing crescent

LIVING SPACE HUMIDITY

The weather station uses saved data to determine the humidity in the living space and shows the respective symbols.

comfortable dry humid

Warranty period

Гарантийный срок

Date of sale

Дата продажи

Model

Номер модели

Stamp

Печать магазина

BATTERY CONDITION DISPLAY

The weather station displays the battery condition symbol to show whether the batteries of the weather station or the transmitter need to be exchanged.

- Weather station battery condition display: within indoor area of the display

• Transmitter battery condition display: in the outer area of the display.

ILLUMINATION

Press the key [SNOOZE/LIGHT] to activate the display illumination for 5 seconds.

WIRELESS CONNECTION

TO THE TRANSMITTER

• Press the key [CHANNEL] to select a channel You can read the data of up to 3 transmitters at one weather station.

• Press and hold the key [CHANNEL] for 3 seconds to search for transmitters You can exit this process by pressing the key [CHANNEL].
