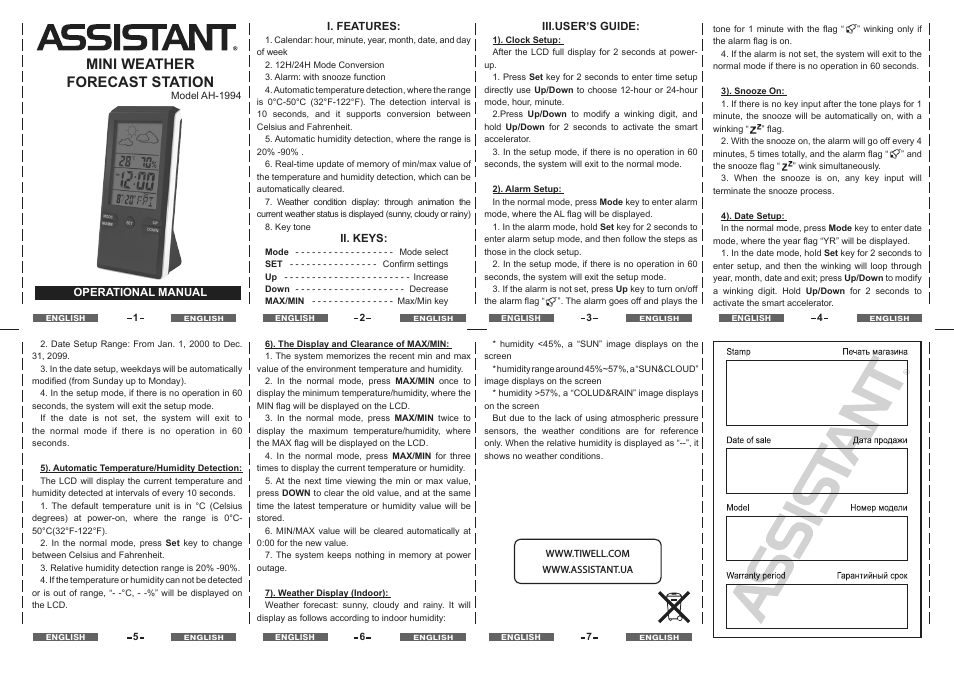

MINI WEATHER

FORECAST STATION

Model AH-1994

OpERATIONAl MANuAl

I FEATuRES: 1 Calendar: hour minute year month date and day of week 2 12H/24H Mode Conversion 3 Alarm: with snooze function 4 Automatic temperature detection where the range is 0°C-50°C (32°F-122°F) The detection interval is 10 seconds and it supports conversion between Celsius and Fahrenheit 5 Automatic humidity detection where the range is 20% 90% 6 Real-time update of memory of min/max value of the temperature and humidity detection which can be automatically cleared 7 Weather condition display: through animation the current weather status is displayed (sunny cloudy or rainy) 8 Key tone

II KEyS:

Mode Mode select

SET Confirm settings up Increase

Down Decrease

MAX/MIN Max/Min key

III.uSER’S GuIDE: 1) Clock Setup:

After the LCD full display for 2 seconds at powerup 1 Press

Set key for 2 seconds to enter time setup directly use up/Down to choose 12-hour or 24-hour mode hour minute 2.Press up/Down to modify a winking digit and hold up/Down for 2 seconds to activate the smart accelerator 3 In the setup mode if there is no operation in 60 seconds the system will exit to the normal mode 2) Alarm Setup:

In the normal mode press

Mode key to enter alarm mode where the AL flag will be displayed 1 In the alarm mode hold

Set key for 2 seconds to enter alarm setup mode and then follow the steps as those in the clock setup 2 In the setup mode if there is no operation in 60 seconds the system will exit the setup mode 3 If the alarm is not set press up key to turn on/off the alarm flag “

” The alarm goes off and plays the

ENGLISH

ENGLISH

ENGLISH

ENGLISH

RUSSIAN

РУССКИЙ

2 Date Setup Range: From Jan 1 2000 to Dec 31 2099 3 In the date setup weekdays will be automatically modified (from Sunday up to Monday) 4 In the setup mode if there is no operation in 60 seconds the system will exit the setup mode

If the date is not set the system will exit to the normal mode if there is no operation in 60 seconds 5) Automatic Temperature/Humidity Detection:

The LCD will display the current temperature and humidity detected at intervals of every 10 seconds 1 The default temperature unit is in °C (Celsius degrees) at power-on where the range is 0°C-
50°C(32°F-122°F) 2 In the normal mode press

Set key to change between Celsius and Fahrenheit 3 Relative humidity detection range is 20% 90%.
4 If the temperature or humidity can not be detected or is out of range “ °C %” will be displayed on the LCD tone for 1 minute with the flag “

” winking only if the alarm flag is on 4 If the alarm is not set the system will exit to the normal mode if there is no operation in 60 seconds 3) Snooze On: 1 If there is no key input after the tone plays for 1 minute the snooze will be automatically on with a winking “

” flag 2 With the snooze on the alarm will go off every 4 minutes 5 times totally and the alarm flag “

” and the snooze flag “

” wink simultaneously 3 When the snooze is on any key input will terminate the snooze process 4) Date Setup:

In the normal mode press

Mode key to enter date mode where the year flag “YR” will be displayed 1 In the date mode hold

Set key for 2 seconds to enter setup and then the winking will loop through year month date and exit; press up/Down to modify a winking digit Hold up/Down for 2 seconds to activate the smart accelerator 6) The Display and Clearance of MAX/MIN: 1 The system memorizes the recent min and max value of the environment temperature and humidity 2 In the normal mode press

MAX/MIN once to display the minimum temperature/humidity where the MIN flag will be displayed on the LCD 3 In the normal mode press

MAX/MIN twice to display the maximum temperature/humidity where the MAX flag will be displayed on the LCD 4 In the normal mode press

MAX/MIN for three times to display the current temperature or humidity 5 At the next time viewing the min or max value press

DOWN to clear the old value and at the same time the latest temperature or humidity value will be stored 6 MIN/MAX value will be cleared automatically at 0:00 for the new value 7 The system keeps nothing in memory at power outage 7) Weather Display (Indoor):

Weather forecast: sunny cloudy and rainy It will display as follows according to indoor humidity:

* humidity

* humidity range around 45%~57% a “SUN&CLOUD” image displays on the screen

* humidity >57% a “COLUD&RAIN” image displays on the screen

But due to the lack of using atmospheric pressure sensors the weather conditions are for reference only When the relative humidity is displayed as “ ” it shows no weather conditions
