ACM 507/02

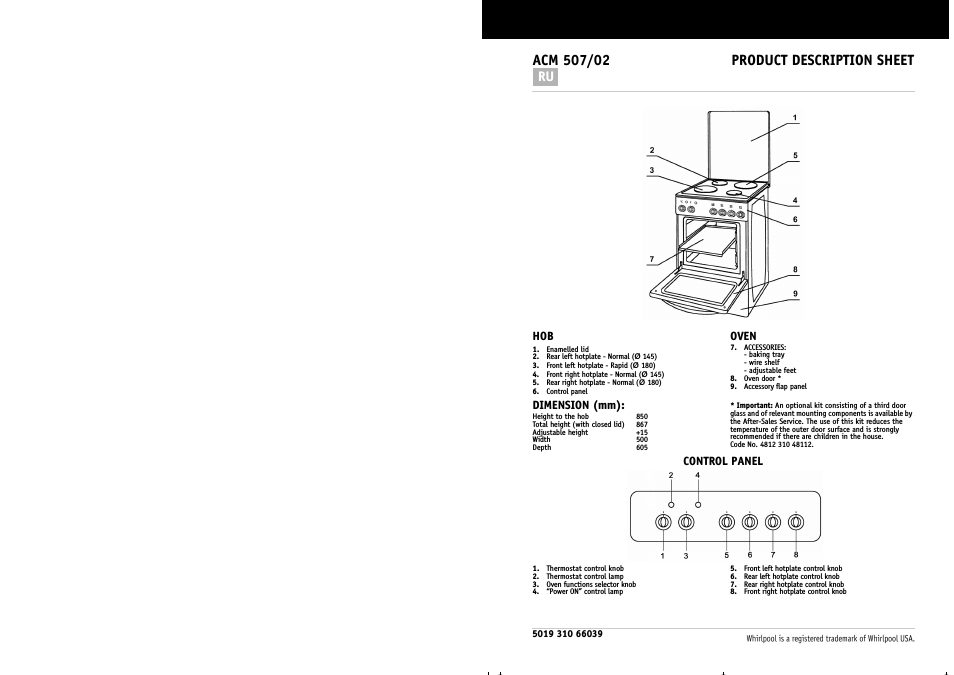

PRODUCT DESCRIPTION SHEET

5019 310 66039

1 Enamelled lid

2 Rear left hotplate Normal (Ø 145)
3 Front left hotplate Rapid (Ø

180)

4 Front right hotplate Normal (Ø

145)

5 Rear right hotplate Normal (Ø

180)

6 Control panel

DIMENSION (mm):

Height to the hob

Total height (with closed lid)

Adjustable height

Width

Depth

OVEN

7 ACCESSORIES:

baking tray wire shelf adjustable feet

8 Oven door *

9 Accessory flap panel

* Important: An optional kit consisting of a third door glass and of relevant mounting components is available by the After-Sales Service The use of this kit reduces the temperature of the outer door surface and is strongly recommended if there are children in the house.

Code No 4812 310 48112.

CONTROL PANEL

1 Thermostat control knob

2 Thermostat control lamp

3 Oven functions selector knob

4 “Power ON” control lamp

5 Front left hotplate control knob

6 Rear left hotplate control knob

7 Rear right hotplate control knob

8 Front right hotplate control knob
