Audio Output Transformer
LL5402
LL5402 is an audio output transformer for unbalanced drive, ideally used with mixed feedback drive circuits (see
application example below). If primary pins 1 and 5 are connected to ground, the windings are arranged such that
cold ends of the primary windings surround each secondary winding. This reduces the effect of capacitance
between the primary and the secondary windings.
Turns ratio: 2 + 2 : 1 + 1
Dims (Length x Width x Height above PCB (mm)): 43 x 28 x 21

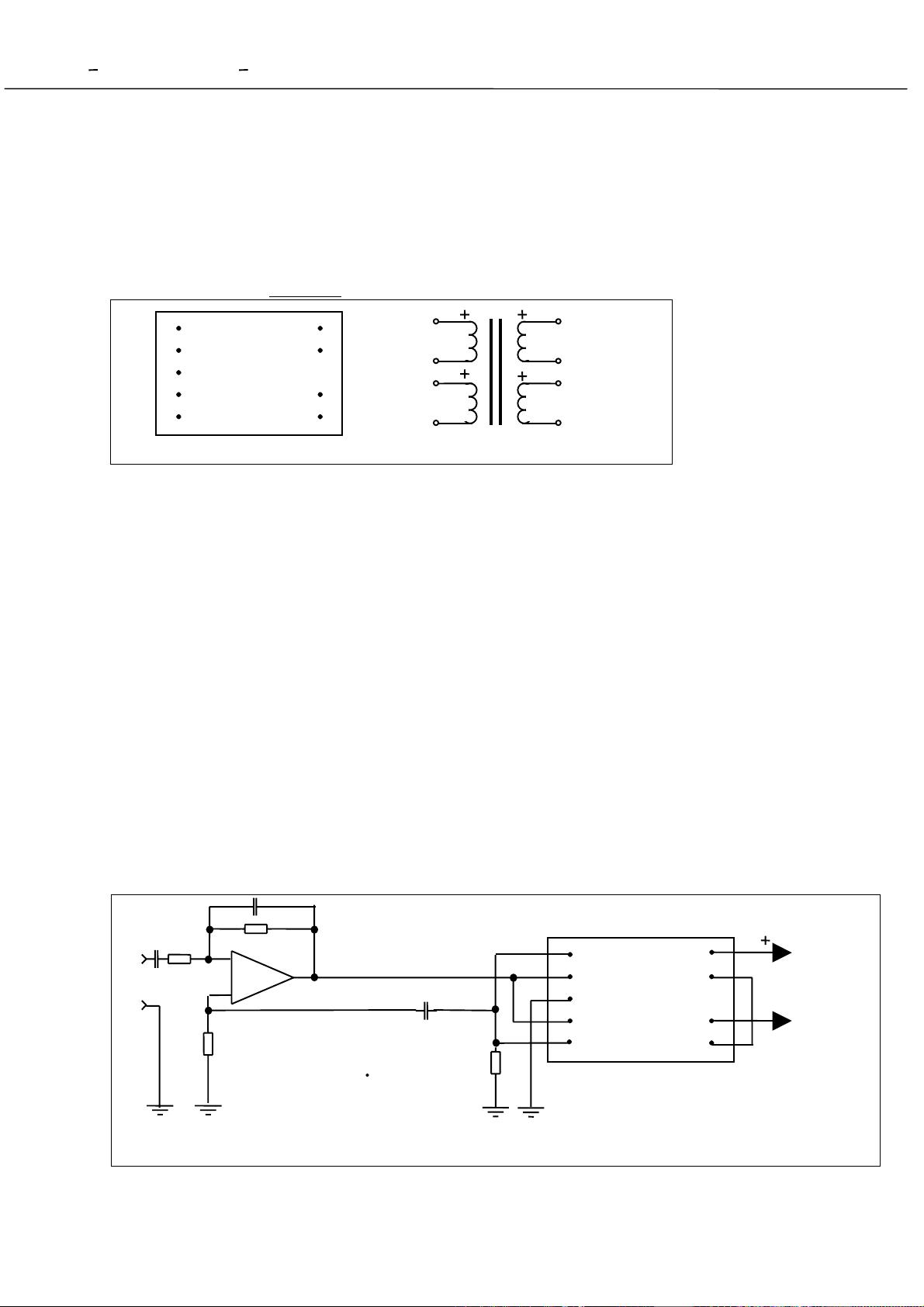

Pin layout (viewed from component
side) and winding schematics:
Spacing between pins:
5.08 mm (0.2")
Spacing between rows of pins:
30.48 mm (1.2")
Weight:
92 g
Rec. PCB hole diameter:
1.5 mm
Static resistance of each primary:
30
Ω
Static resistance of each secondary:
7
Ω
Leakage inductance of secondaries (sec. in series): 0.2 mH
No-load impedance:
>800
Ω
@ 50 Hz, +20 dBU
Optimum source impedance:
Minus 15
Ω
(See application below)
Balance of output (according to IRT, source < 10
Ω
, Load 600
Ω):
> 60 dB
Note! Performance figures below are obtained using mixed feedback drive circuits. (See application
example).Otherwise use lowest possible source impedance.
Distortion (connection as application example below, load 600
Ω
)
+ 22 dBU 0.1% @ 50 Hz
Frequency response (as below , load 600
Ω
):
20 Hz -- 40 kHz +/- 0.3 dB
Voltage loss across transformer (at midband with 600
Ω
load):
0 dB
Isolation between primary and secondary windings / between
windings and core:
4 kV / 2 kV
Application example with mixed feedback: (NOTE! This application was covered by a German patent
DE 29 01 567 with application day 13.1.79. Qs far as we know the patent is expired)
R020318
5
4
3
2
1
10
9
7
6
3 Can + Core
7
2
6
1
9
4
10
5
_
Gain = Rf / Rin
Optimum R = Rp (Rin/Rf)
where Rp is Cu resistance of prim.
Select R for best THD at LF
_
Cin Rin
Rf
R
NE5534
5
4
3
2
1
10
9
7
6
Tibeliusgatan 7 International Domestic
S-761 50 NORRTÄLJE Phone +46 - 176 13930 0176-13930
SWEDEN Fax +46 - 176 13935 0176-13935
LL5402
(To
view)
