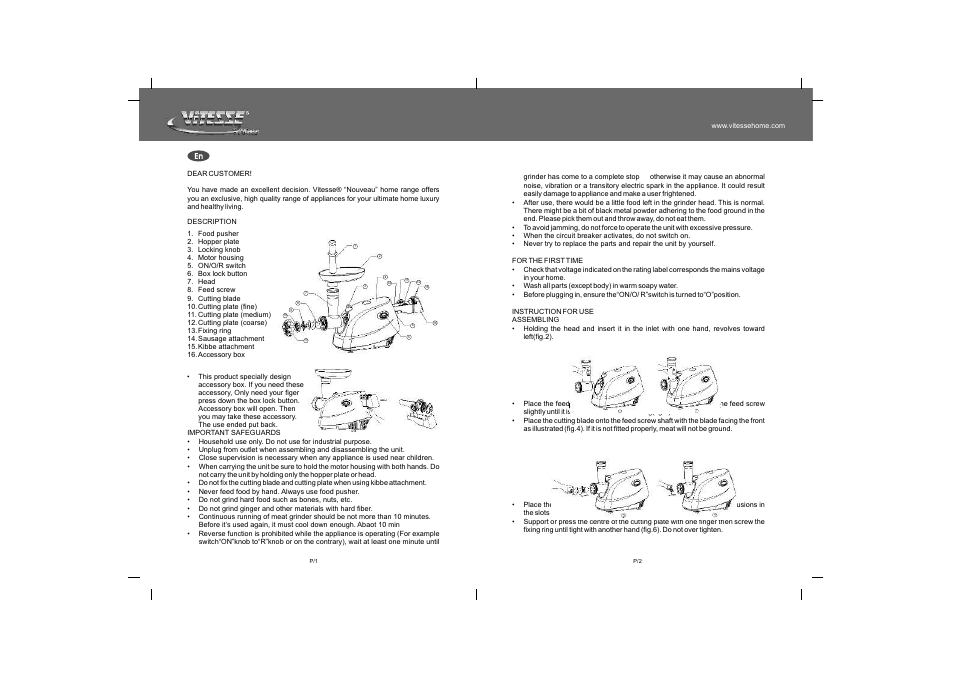

Инструкция по эксплуатации ViTESSE VS-705 — страница 2

DEAR CUSTOMER!

You have made an excellent decision Vitesse® “Nouveau” home range offers you an exclusive high quality range of appliances for your ultimate home luxury and healthy living.

DESCRIPTION

IMPORTANT SAFEGUARDS •

Household use only Do not use for industrial purpose.

Unplug from outlet when assembling and disassembling the unit.

Close supervision is necessary when any appliance is used near children.

When carrying the unit be sure to hold the motor housing with both hands Do not carry the unit by holding only the hopper plate or head

Do not fix the cutting blade and cutting plate when using kibbe attachment.

Never feed food by hand Always use food pusher.

Do not grind hard food such as bones nuts etc.

Do not grind ginger and other materials with hard fiber.

Continuous running of meat grinder should be not more than 10 minutes Before it’s used again it must cool down enough Abaot 10 min

Reverse function is prohibited while the appliance is operating (For example switch“ON”knob to“R”knob or on the contrary) wait at least one minute until

grinder has come to a complete stop otherwise it may cause an abnormal noise vibration or a transitory electric spark in the appliance It could result easily damage to appliance and make a user frightened

After use there would be a little food left in the grinder head This is normal There might be a bit of black metal powder adhering to the food ground in the end Please pick them out and throw away do not eat them

To avoid jamming do not force to operate the unit with excessive pressure.

When the circuit breaker activates do not switch on

Never try to replace the parts and repair the unit by yourself.

FOR THE FIRST TIME •

Check that voltage indicated on the rating label corresponds the mains voltage in your home.

Wash all parts (except body) in warm soapy water.

Before plugging in ensure the“ON/O R”switch is turned to“O”position.

INSTRUCTION FOR USE ASSEMBLING •

Holding the head and insert it in the inlet with one hand revolves toward left(fig.2).

Place the feed screw into the head long end first by turning the feed screw slightly until it is set into the motor housing(fig.3).

• Place the cutting blade onto the feed screw shaft with the blade facing the front as illustrated (fig.4) If it is not fitted properly meat will not be ground.

Place the desired cutting plate next to the cutting blade fitting protrusions in the slots (fig.5).

Support or press the centre of the cutting plate with one finger then screw the fixing ring until tight with another hand (fig.6) Do not over tighten.

1 Food pusher 2 Hopper plate 3 Locking knob 4 Motor housing 5 ON/O/R switch 6 Box lock button 7 Head 8 Feed screw 9 Cutting blade 10 Cutting plate (fine)
11 Cutting plate (medium)
12 Cutting plate (coarse)
13 Fixing ring 14 Sausage attachment 15 Kibbe attachment 16 Accessory box

This product specially design accessory box If you need these accessory Only need your figer press down the box lock button Accessory box will open Then you may take these accessory The use ended put back.
