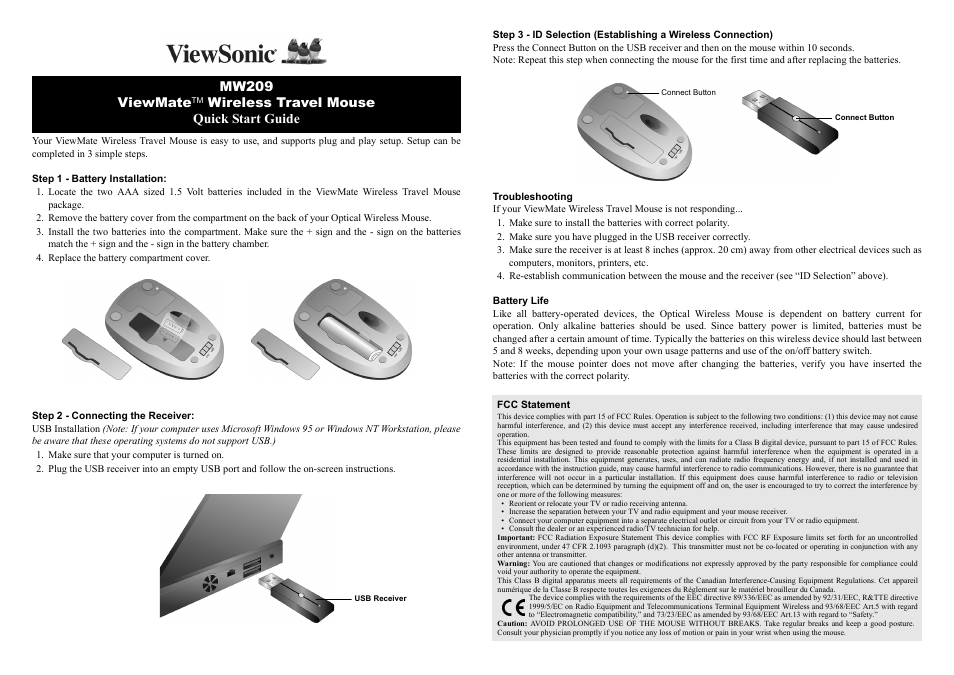

Инструкция по эксплуатации VIEWSONIC MW209

Your ViewMate Wireless Travel Mouse is easy to use and supports plug and play setup Setup can be completed in 3 simple steps

Step 1 Battery Installation:

1 Locate the two AAA sized 1.5 Volt batteries included in the ViewMate Wireless Travel Mouse package 2 Remove the battery cover from the compartment on the back of your Optical Wireless Mouse. 3 Install the two batteries into the compartment Make sure the + sign and the sign on the batteries match the + sign and the sign in the battery chamber.

4 Replace the battery compartment cover.

Step 2 Connecting the Receiver:
USB Installation (Note: If your computer uses Microsoft Windows 95 or Windows NT Workstation please be aware that these operating systems do not support USB.)

1 Make sure that your computer is turned on. 2 Plug the USB receiver into an empty USB port and follow the on-screen instructions.

Step 3 ID Selection (Establishing a Wireless Connection)
Press the Connect Button on the USB receiver and then on the mouse within 10 seconds Note: Repeat this step when connecting the mouse for the first time and after replacing the batteries.

Troubleshooting If your ViewMate Wireless Travel Mouse is not responding

1 Make sure to install the batteries with correct polarity. 2 Make sure you have plugged in the USB receiver correctly. 3 Make sure the receiver is at least 8 inches (approx 20 cm) away from other electrical devices such as computers monitors printers etc.

4 Re-establish communication between the mouse and the receiver (see “ID Selection” above).

Battery Life Like all battery-operated devices the Optical Wireless Mouse is dependent on battery current for operation Only alkaline batteries should be used Since battery power is limited batteries must be changed after a certain amount of time Typically the batteries on this wireless device should last between 5 and 8 weeks depending upon your own usage patterns and use of the on/off battery switch Note: If the mouse pointer does not move after changing the batteries verify you have inserted the batteries with the correct polarity.

FCC Statement

This device complies with part 15 of FCC Rules Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction guide may cause harmful interference to radio communications However there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate your TV or radio receiving antenna.

• Increase the separation between your TV and radio equipment and your mouse receiver.

• Connect your computer equipment into a separate electrical outlet or circuit from your TV or radio equipment.

• Consult the dealer or an experienced radio/TV technician for help.

Important: FCC Radiation Exposure Statement This device complies with FCC RF Exposure limits set forth for an uncontrolled environment under 47 CFR 2.1093 paragraph (d)(2) This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC R&TTE directive

1999/5/EC on Radio Equipment and Telecommunications Terminal Equipment Wireless and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.”

Caution: AVOID PROLONGED USE OF THE MOUSE WITHOUT BREAKS Take regular breaks and keep a good posture.

Consult your physician promptly if you notice any loss of motion or pain in your wrist when using the mouse.

MW209

ViewMate

Wireless Travel Mouse

Quick Start Guide

Connect Button

Connect Button

USB Receiver
