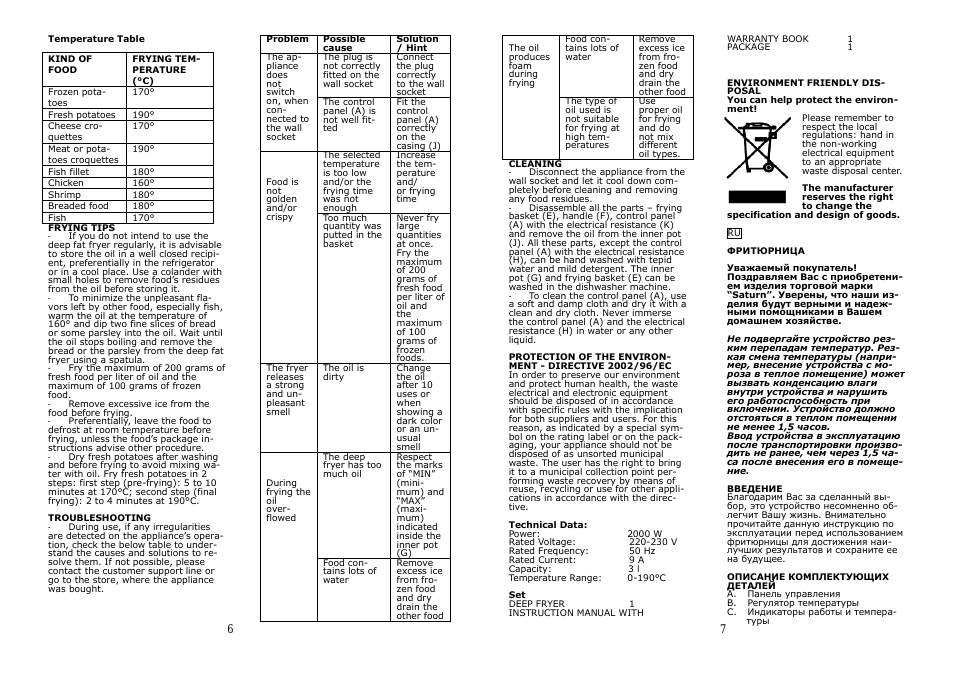

Инструкция по эксплуатации Saturn ST-EC0141 — страница 3

Temperature Table

KIND OF FOOD

FRYING TEMPERATURE (°C)

Frozen potatoes

170°

Fresh potatoes

190°

Cheese croquettes

170°

Meat or potatoes croquettes

190°

Fish fillet

180°

Chicken

160°

Shrimp

180°

Breaded food

180°

Fish

170°

FRYING TIPS

If you do not intend to use the deep fat fryer regularly it is advisable to store the oil in a well closed recipient preferentially in the refrigerator or in a cool place Use a colander with small holes to remove food’s residues from the oil before storing it.

To minimize the unpleasant flavors left by other food especially fish warm the oil at the temperature of

160° and dip two fine slices of bread or some parsley into the oil Wait until the oil stops boiling and remove the bread or the parsley from the deep fat fryer using a spatula.

Fry the maximum of 200 grams of fresh food per liter of oil and the maximum of 100 grams of frozen food.

Remove excessive ice from the food before frying.

Preferentially leave the food to defrost at room temperature before frying unless the food’s package instructions advise other procedure.

Dry fresh potatoes after washing and before frying to avoid mixing water with oil Fry fresh potatoes in 2

steps: first step (pre-frying): 5 to 10

minutes at 170°C; second step (final frying): 2 to 4 minutes at 190°C.

TROUBLESHOOTING

During use if any irregularities are detected on the appliance’s operation check the below table to understand the causes and solutions to resolve them If not possible please contact the customer support line or go to the store where the appliance was bought.

Problem

Possible cause

Solution

Hint

The plug is not correctly fitted on the wall socket

Connect the plug correctly to the wall socket

The appliance does not switch on when connected to the wall socket

The control panel (A) is not well fitted

Fit the control panel (A)

correctly on the casing (J)

The selected temperature is too low and/or the frying time was not enough

Increase the temperature and or frying time

Food is not golden and/or crispy

Too much quantity was putted in the basket

Never fry large quantities at once.

Fry the maximum of 200

grams of fresh food per liter of oil and the maximum of 100

grams of frozen foods.

The fryer releases a strong and unpleasant smell

The oil is dirty

Change the oil after 10

uses or when showing a dark color or an unusual smell

The deep fryer has too much oil

Respect the marks of “MIN”

(minimum) and

“MAX”

(maximum)

indicated inside the inner pot (G)

During frying the oil overflowed

Food contains lots of water

Remove excess ice from frozen food and dry drain the other food

Food contains lots of water

Remove excess ice from frozen food and dry drain the other food

The oil produces foam during frying

The type of oil used is not suitable for frying at high temperatures

Use proper oil for frying and do not mix different oil types.

CLEANING

Disconnect the appliance from the wall socket and let it cool down completely before cleaning and removing any food residues.

Disassemble all the parts – frying basket (E) handle (F) control panel (A) with the electrical resistance (K)

and remove the oil from the inner pot (J) All these parts except the control panel (A) with the electrical resistance (H) can be hand washed with tepid water and mild detergent The inner pot (G) and frying basket (E) can be washed in the dishwasher machine.

To clean the control panel (A) use a soft and damp cloth and dry it with a clean and dry cloth Never immerse the control panel (A) and the electrical resistance (H) in water or any other liquid.

PROTECTION OF THE ENVIRON-

MENT DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication for both suppliers and users For this reason as indicated by a special symbol on the rating label or on the packaging your appliance should not be disposed of as unsorted municipal waste The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse recycling or use for other applications in accordance with the directive.

Technical Data:

Power:

2000 W

Rated Voltage:

220-230 V

Rated Frequency:

50 Hz

Rated Current:

Capacity: 3 l

Temperature Range: 0-190°C

DEEP FRYER

INSTRUCTION MANUAL WITH

WARRANTY BOOK

PACKAGE

ENVIRONMENT FRIENDLY DIS-

POSAL

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal center.

The manufacturer reserves the right to change the specification and design of goods.

ФРИТЮРНИЦА

Уважаемый покупатель!

Поздравляем Вас с приобретением изделия торговой марки

“Saturn” Уверены что наши изделия будут верными и надежными помощниками в Вашем домашнем хозяйстве.

Не подвергайте устройство резким перепадам температур Резкая смена температуры (например внесение устройства с мороза в теплое помещение) может вызвать конденсацию влаги внутри устройства и нарушить его работоспособность при включении Устройство должно отстояться в теплом помещении не менее 1,5 часов

Ввод устройства в эксплуатацию после транспортировки производить не ранее чем через 1,5 часа после внесения его в помещение.

ВВЕДЕНИЕ

Благодарим Вас за сделанный выбор это устройство несомненно облегчит Вашу жизнь Внимательно прочитайте данную инструкцию по эксплуатации перед использованием фритюрницы для достижения наилучших результатов и сохраните ее на будущее.

ОПИСАНИЕ КОМПЛЕКТУЮЩИХ

ДЕТАЛЕЙ

A Панель управления

B Регулятор температуры

C Индикаторы работы и температуры
