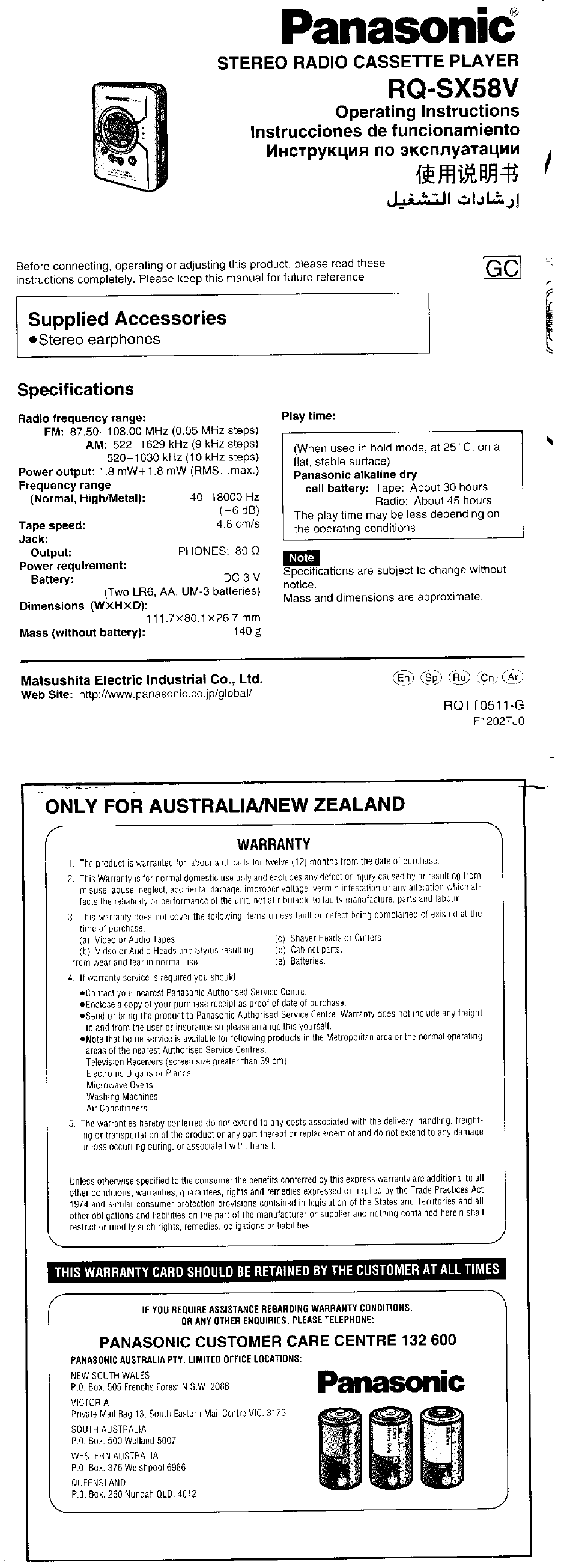

Panasonic*

STEREO RADIO CASSETTE PLAYER

RQ-SX58V

Operating Instructions

Instrucciones de funcionamiento

Инструкция по эксплуатации o

Before connecting operating or adjusting this product please read these instructions completely Please keep this manual for future reference.

Supplied Accessories

• Stereo earphones

Specifications

Radio frequency range:

FM: 87.50-108.00 MHz (0.05 MHz steps)

AM: 522-1629 kHz (9 kHz steps) 520-1630 kHz (10 kHz steps)

Power output: 1.8 mW+1.8 mW (RMS max,)
Frequency range (Normal HIgh/Metai): 40-18000 Hz (-6dB)

Tape speed: 4.8 cm/s

Jack;

Output:

PHONES; 80 Q

Power requirement:

Battery:

DC 3 V

(Two LR6 AA UM-3 batteries)

Dimensions (WxHxD):

111.7x80.1x26.7 mm

Mass (without battery): 140 g

Play time:

(When used in hold mode at 25

'C on a flat stable surface)

Panasonic alkaline dry cell battery: Tape; About 30 hours

Radio: About 45 hours

The play time may be less depending on the operating conditions.

Specifications are subject to change without notice Mass and dimensions are approximate.

Matsushita Electric Industrial Co Ltd.

Web Site: http:

@ (Sg) (g) (Cn С

ROTTOSI 1-G

F1202TJ0

ONLY FOR AUSTRALIA/NEW ZEALAND

WARRANTY

1 The product is warranted for labour and parts for twelve (12) months from the date of purchase.

2 This Warranty is for normal domestic use only and excludes any defect or Injury caused by or resulting from misuse abuse neglect accidental damage improper voltage vermin infestation or any alteration which af­

fects the reliability or performance of the unit not attributable to faulty manufacture parts and labour.

3 This warranty does not cover the tollowing items unless fault or defect being complained of existed at the time of purchase.

(at Video or Audio Tapes (c| Shaver Heads or Cutters (b| Video or Audio Heads and Stylus resulting (d) Cabinet parts from wear and teanii normal use (e) Batteries.

4 It warranty service is required you should:

•Contact your nearest Panasonic Authorised Service Centre.

• Enclose a copy of your purchase receipt as proof of date of purchase.

•Send or bring the product to Panasonic Authorised Service Centre Warranty doss not include any freight to and from the user or insurance so please arrange this yourself.

•Note that home service is available for following products in the Metropolitan area or the normal operating areas of the nearest Authorised Service Centres.

Television Receivers (screen size greater than 39 cm)

Electronic Organs or Pianos

Microwave Ovens

Washing Machines

Air Conditioners

5 The warranties hereby conferred do not extend to any costs associated with the delivery handling freight­

ing or transportation of the product or any part thereof or replacement of and do not extend to any damage or loss occurring during or associated with transit.

Unless otherwise specified to the consumer the benefits conferred by this express warranty are additional to all other conditions warranties guarantees rights and remedies expressed or implied by the Trade Practices Act 1974 and similar consumer protection provisions contained in legislation of the Stales and Territories and all other obligations and liabilities on the part of the manufacturer or supplier and nothing contained herein shall restrict or modify such rights remedies obligations or liabilities.

THIS WARRANTY CARD SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

IF YOU REQUIRE ASSISTANCE REGARDING WARRANTY CONDITIONS,

OR ANY OTHER ENQUIRIES PLEASE TELEPHONE;

PANASONIC CUSTOMER CARE CENTRE 132 600

PANASONIC AUSTRALIA PTY LIMITED OFFICE LOCATIONS:

NEW SOUTH WALES

P.O Box 505 Frenchs Forest N.S.W 2086

VICTORIA

Private Mail Bag 13 South Eastern Mail Centre VIC 3176

SOUTH AUSTRALIA

P.0 Box 500 Welland 5007

WESTERN AUSTRALIA

P.O Box 376 Welshpool 6986

QUEENSLAND

P.O Box 260 NundahQLD 4012

Panasonic
