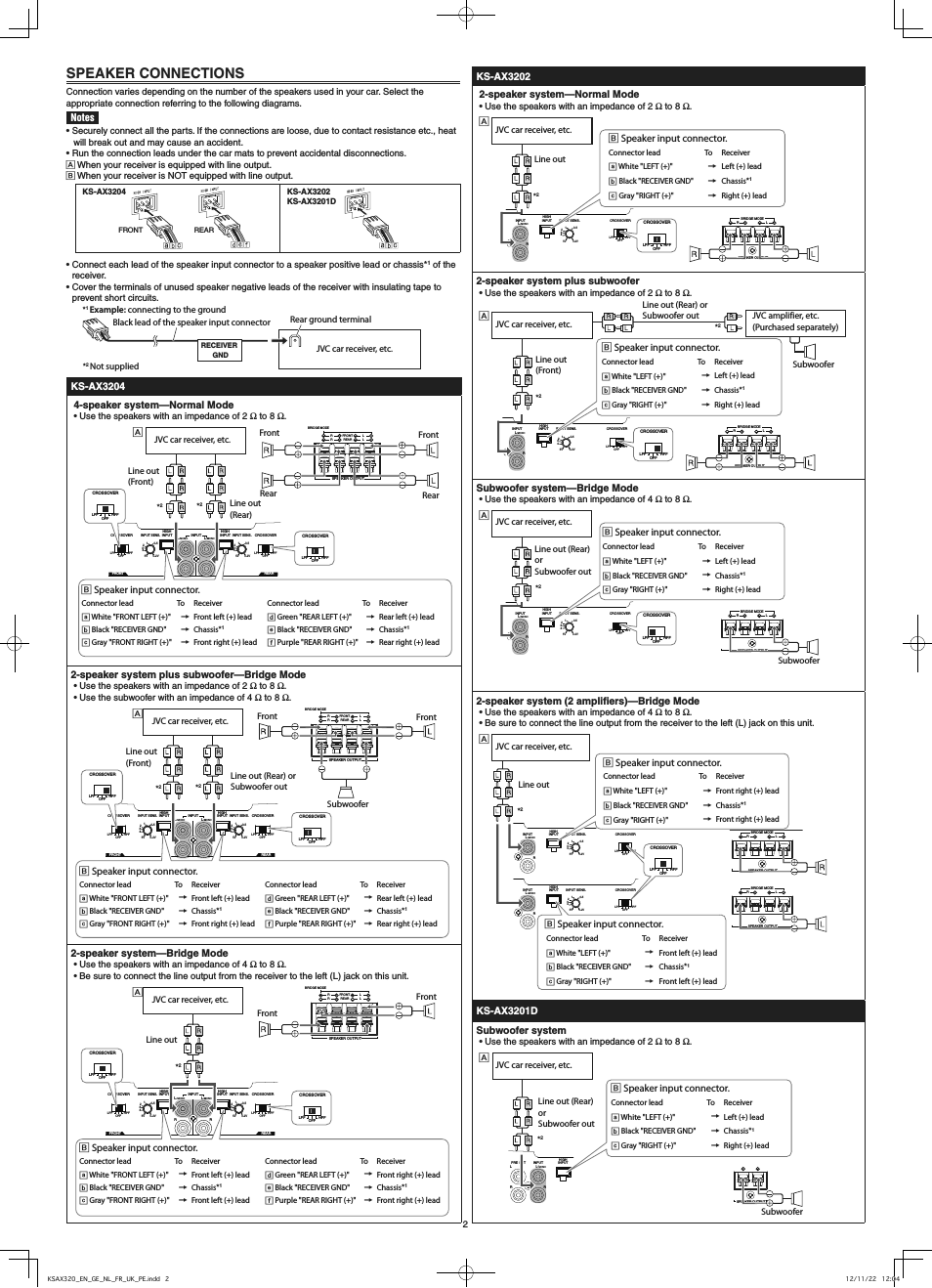

SPEAKER CONNECTIONS

Connection varies depending on the number of the speakers used in your car Select the appropriate connection referring to the following diagrams.

notes

• Securely connect all the parts If the connections are loose due to contact resistance etc heat

will break out and may cause an accident.

• Run the connection leads under the car mats to prevent accidental disconnections. Å

When your receiver is equipped with line output.

When your receiver is NOT equipped with line output.

KS-AX3204

FRONT

REAR

KS-AX3202 KS-AX3201D

• Connect each lead of the speaker input connector to a speaker positive lead or chassis*

of the receiver.

• Cover the terminals of unused speaker negative leads of the receiver with insulating tape to

prevent short circuits.

JVC car receiver etc.

Rear ground terminal

Black lead of the speaker input connector

Example: connecting to the ground

RECEIVER

KS-AX3204

4-speaker system—Normal Mode

• Use the speakers with an impedance of 2

Ω to 8 Ω.

BRIDGE MODE

SPEAKER OUTPUT

REAR

FRONT

FRONT

REAR

MONO

MONO

HIGH

INPUT

HIGH

INPUT

INPUT

CROSSOVER

CROSSOVER

0.

0.

0.

0.

INPUT SENS.

INPUT SENS.

CROSSOVER

CROSSOVER

JVC car receiver etc.

Front

Front

Rear

Rear

Line out (Front)

Line out (Rear)

Speaker input connector.

Connector lead

To Receiver

Connector lead

To Receiver a

White "FRONT LEFT (+)"

= Front left (+) lead d

Green "REAR LEFT (+)"

= Rear left (+) lead b

Black "RECEIVER GND"

= Chassis*

Black "RECEIVER GND"

= Chassis*

Gray "FRONT RIGHT (+)"

= Front right (+) lead f Purple "REAR RIGHT (+)" = Rear right (+) lead

2-speaker system plus subwoofer—Bridge Mode

• Use the speakers with an impedance of 2

Ω to 8 Ω.

• Use the subwoofer with an impedance of 4

Ω to 8 Ω.

BRIDGE MODE

SPEAKER OUTPUT

REAR

FRONT

FRONT

REAR

MONO

MONO

HIGH

INPUT

HIGH

INPUT

INPUT

CROSSOVER

CROSSOVER

0.

0.

0.

0.

INPUT SENS.

INPUT SENS.

CROSSOVER

CROSSOVER

JVC car receiver etc.

Front

Front

Subwoofer

Line out (Front)

Line out (Rear) or Subwoofer out

Speaker input connector.

Connector lead

To Receiver

Connector lead

To Receiver a

White "FRONT LEFT (+)"

= Front left (+) lead d

Green "REAR LEFT (+)"

= Rear left (+) lead b

Black "RECEIVER GND"

= Chassis*

Black "RECEIVER GND"

= Chassis*

Gray "FRONT RIGHT (+)"

= Front right (+) lead f Purple "REAR RIGHT (+)" = Rear right (+) lead

2-speaker system—Bridge Mode

• Use the speakers with an impedance of 4

Ω to 8 Ω.

• Be sure to connect the line output from the receiver to the left (L) jack on this unit.

BRIDGE MODE

SPEAKER OUTPUT

REAR

FRONT

FRONT

REAR

MONO

MONO

HIGH

INPUT

HIGH

INPUT

INPUT

CROSSOVER

CROSSOVER

0.

0.

0.

0.

INPUT SENS.

INPUT SENS.

CROSSOVER

CROSSOVER

JVC car receiver etc.

Front

Front

Line out

Speaker input connector.

Connector lead

To Receiver

Connector lead

To Receiver a

White "FRONT LEFT (+)"

= Front left (+) lead d

Green "REAR LEFT (+)"

= Front right (+) lead b

Black "RECEIVER GND"

= Chassis*

Black "RECEIVER GND"

= Chassis*

Gray "FRONT RIGHT (+)"

= Front left (+) lead f

Purple "REAR RIGHT (+)"

= Front right (+) lead

KS-AX3202

2-speaker system—Normal Mode

• Use the speakers with an impedance of 2

Ω to 8 Ω.

SPEAKER OUTPUT

BRIDGE MODE

HIGH

INPUT

INPUT

CROSSOVER

MONO

0.

0.

INPUT SENS.

CROSSOVER

JVC car receiver etc.

Line out

Speaker input connector.

Connector lead

To Receiver a

White "LEFT (+)"

= Left (+) lead b

Black "RECEIVER GND"

= Chassis*

Gray "RIGHT (+)"

= Right (+) lead

2-speaker system plus subwoofer

• Use the speakers with an impedance of 2

Ω to 8 Ω.

SPEAKER OUTPUT

BRIDGE MODE

HIGH

INPUT

INPUT

CROSSOVER

MONO

0.

0.

INPUT SENS.

CROSSOVER

JVC car receiver etc.

Line out (Front)

Speaker input connector.

Connector lead

To Receiver a

White "LEFT (+)"

= Left (+) lead b

Black "RECEIVER GND"

= Chassis*

Gray "RIGHT (+)"

= Right (+) lead

Line out (Rear) or Subwoofer out

Subwoofer

JVC amplifier etc. (Purchased separately)

Subwoofer system—Bridge Mode

• Use the speakers with an impedance of 4

Ω to 8 Ω.

SPEAKER OUTPUT

BRIDGE MODE

HIGH

INPUT

INPUT

CROSSOVER

MONO

0.

0.

INPUT SENS.

CROSSOVER

JVC car receiver etc.

Speaker input connector.

Connector lead

To Receiver a

White "LEFT (+)"

= Left (+) lead b

Black "RECEIVER GND"

= Chassis*

Gray "RIGHT (+)"

= Right (+) lead

Line out (Rear)
or Subwoofer out

Subwoofer

2-speaker system (2 amplifiers)—Bridge Mode

• Use the speakers with an impedance of 4

Ω to 8 Ω.

• Be sure to connect the line output from the receiver to the left (L) jack on this unit.

SPEAKER OUTPUT

BRIDGE MODE

SPEAKER OUTPUT

BRIDGE MODE

HIGH

INPUT

INPUT

CROSSOVER

MONO

0.

0.

INPUT SENS.

HIGH

INPUT

INPUT

CROSSOVER

MONO

0.

0.

INPUT SENS.

CROSSOVER

JVC car receiver etc.

Speaker input connector.

Connector lead

To Receiver a

White "LEFT (+)"

= Front left (+) lead b

Black "RECEIVER GND"

= Chassis*

Gray "RIGHT (+)"

= Front left (+) lead

Line out

Speaker input connector.

Connector lead

To Receiver a

White "LEFT (+)"

= Front right (+) lead b

Black "RECEIVER GND"

= Chassis*

Gray "RIGHT (+)"

= Front right (+) lead

KS-AX3201D

Subwoofer system

• Use the speakers with an impedance of 2

Ω to 8 Ω.

SPEAKER OUTPUT

MONO

HIGH

INPUT

PRE OUT

INPUT

Line out (Rear)
or Subwoofer out

JVC car receiver etc.

Speaker input connector.

Connector lead

To Receiver a

White "LEFT (+)"

= Left (+) lead b

Black "RECEIVER GND"

= Chassis*

Gray "RIGHT (+)"

= Right (+) lead

Subwoofer

Not supplied
