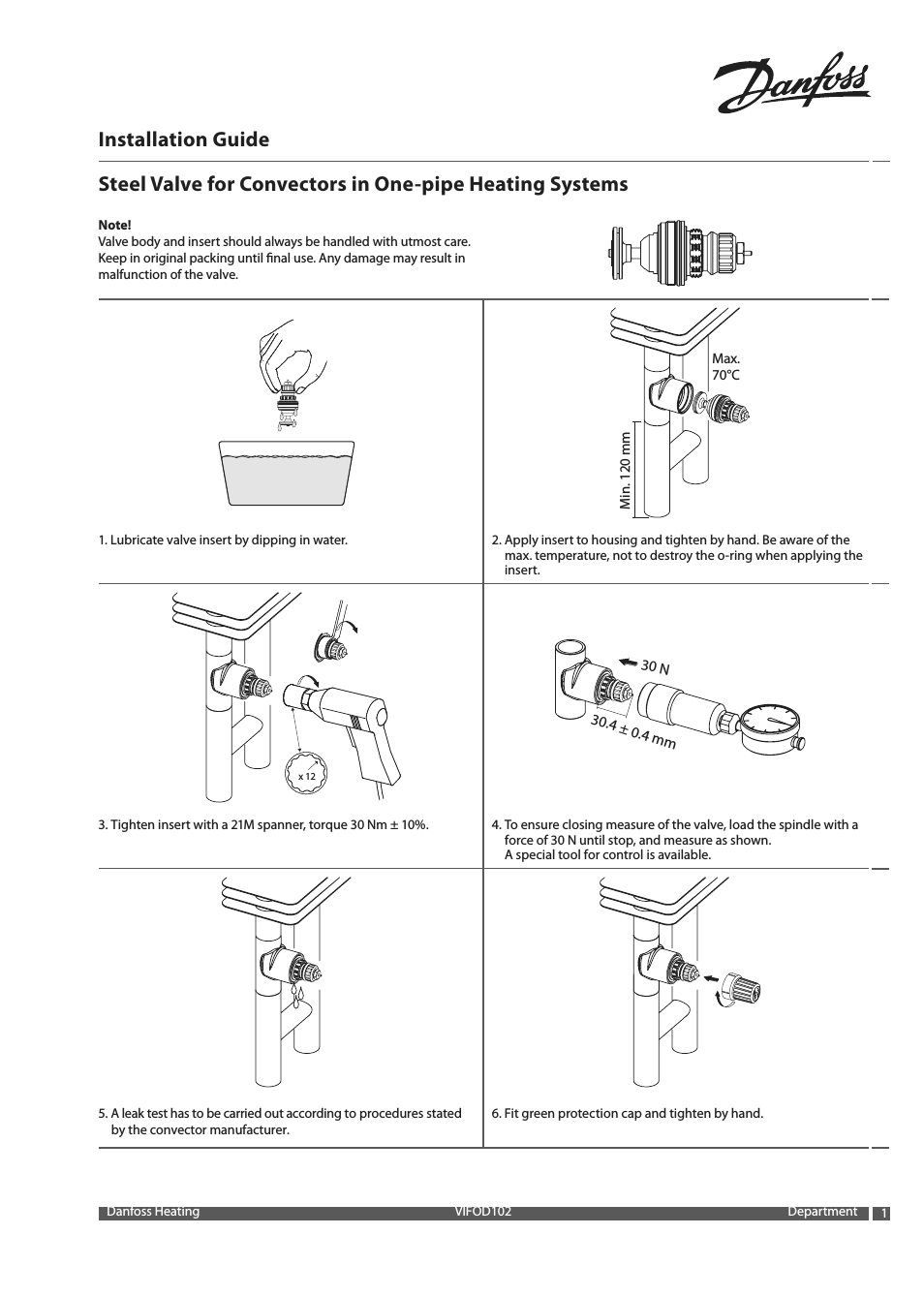

Installation Guide

Steel Valve for Convectors in One-pipe Heating Systems

Danfoss Heating

VIFOD102

Department

Note!
Valve body and insert should always be handled with utmost care Keep in original packing until final use Any damage may result in malfunction of the valve.

Max.

70°C

in 120 mm

1 Lubricate valve insert by dipping in water 2 Apply insert to housing and tighten by hand Be aware of the max temperature not to destroy the o-ring when applying the insert.

x 12

30 N

30.4 ± 0.4 mm

3 Tighten insert with a 21M spanner torque 30 Nm ± 10%.

4 To ensure closing measure of the valve load the spindle with a force of 30 N until stop and measure as shown.

A special tool for control is available.

5 A leak test has to be carried out according to procedures stated by the convector manufacturer.

6 Fit green protection cap and tighten by hand
